Industrial Mini Air Adjustable Torque Straight Screwdriver 800 RPM
Internal Adjustable Torque Straight Screwdriver offers adjustable torque with a reversible direction switch for precise industrial fastening.
Estimate Shipping for This Tool
Enter a destination to compare available shipping rates. Uses the quantity and options selected above; does not add items to your cart.

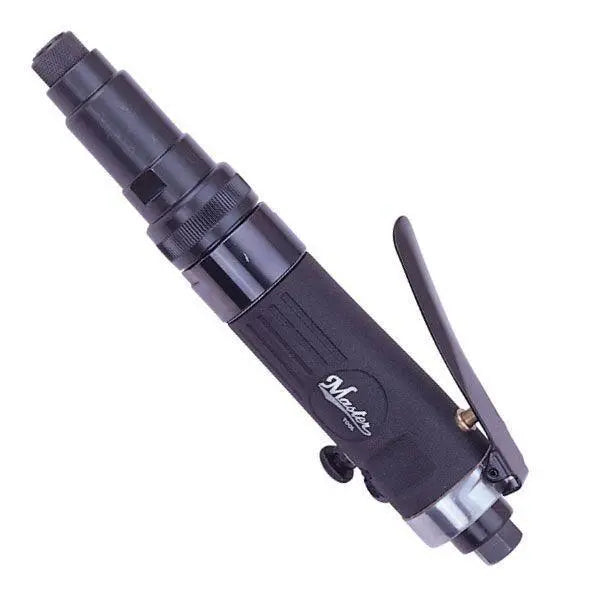

The Industrial Mini Air Adjustable Torque Straight Screwdriver delivers precise torque control with adjustable settings and a reversible direction switch, engineered for durable and efficient fastening in industrial environments. This pneumatic tool supports a torque range from 50 to 135 ft-lb and operates at 800 RPM, making it ideal for factory assembly lines requiring compact power and reliability.
Industrial Mini Air Adjustable Torque Straight Screwdriver Overview
The Industrial Mini Air Adjustable Torque Straight Screwdriver is designed for precision engineering applications requiring adjustable torque and reversible operation. Its cam-over torque limiting clutch signals when the maximum torque is reached, preventing over-tightening and ensuring consistent fastening quality.
Built for heavy industrial use, this pneumatic tool operates at 800 RPM with an air consumption of 2.79 CFM under 90 PSIA air pressure. The compact and durable construction includes a rear exhaust to enhance operator comfort during extended use.
The screwdriver features a rotate-to-open mechanism allowing quick exchange of springs to adjust the torque range between 50 and 135 ft-lb, supporting various fastening requirements on factory floors and maintenance operations.
| Free Speed | 800 RPM |
|---|---|
| Air Consumption | 18 SCFM |
| Air Consumption | 2.79 CFM |
| Air Consumption | 397.6128 m³/hr |
| Air Consumption | 6.62688 m³/min |
| Air Pressure | 6.3279 kg/cm² |
| Air Pressure | 90 PSI |
| Air Pressure | 6.21 bar |
| Air Pressure | 620.55 kPa |

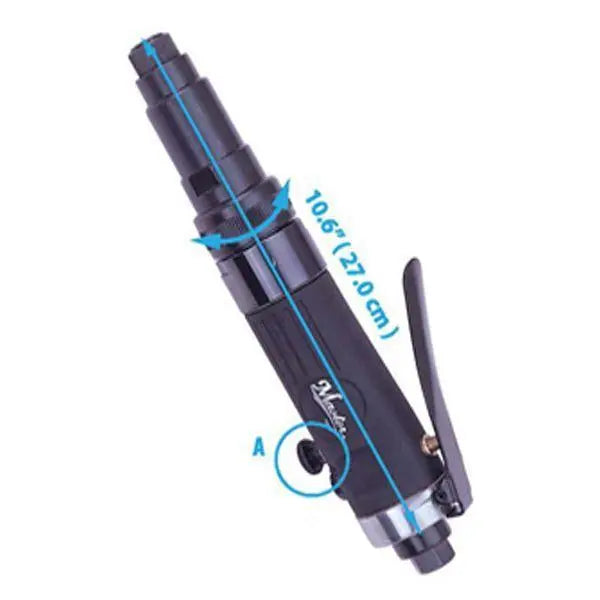

| Overall Length | 10.63 in |
| Overall Length | 270 mm |
| Weight | 1.3 kg |
| Weight | 2.86 lb |
| Exhaust | Rear |
| Noise Level | 82 dBA |
| Air Hose Size | 3/8 in |
| Air Hose Size | 9.52 mm |
| Horsepower | 0.9 HP |
| Power | 0.68 kW |
| Max Torque Range Ftlb | 135 |
| Min Torque Range Ftlb | 50 |
| Max Torque Range Nm | 15.25 |
| Min Torque Range Nm | 5.65 |
| Max Torque Range Inlb | 135 |
| Min Torque Range Inlb | 50 |
| Free Speed RPM | 800 |
| Air Consumption SCFM | 18 |
| Air Consumption CFM | 2.79 |
| Air Consumption m³ hr | 397.6128 |
| Air Consumption m³ min | 6.62688 |
| Air Pressure kg | 6.3279 |
| Air Pressure PSI | 90 |
| Air Pressure bar | 6.21 |
| Air Pressure kPa | 620.55 |
| Overall Length in | 10.63 |
| Overall Length mm | 270 |
| Weight kg | 1.3 |
| Weight lb | 2.86 |
| dBA | 82 |
| Air Hose Size in | 3/8 |
| Air Hose Size mm | 9.52 |
| HP | 0.9 |
| kW | 0.68 |
| Maximum Torque Range ft-lb | 135 |
| Maximum Torque Range N·m | 15.25 |
| Maximum Torque Range in-lb | 135 |
Features
Direction Swtich: Pull up the swtich Change forward backward. Cam-over Torque Limiting Clutch: Signals the maximum torque had been achieved
Applications
Applications
This screwdriver is ideal for factory assembly lines requiring precise torque control and reversible operation. The rotate-to-open feature allows quick torque adjustments by exchanging springs, supporting various fastening requirements in industrial manufacturing and maintenance environments.
